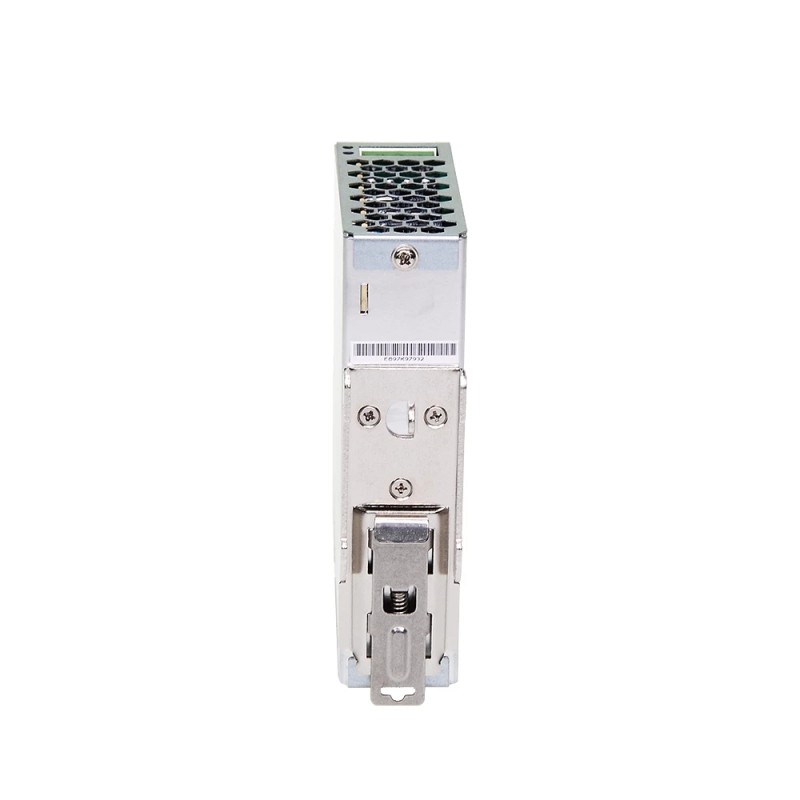

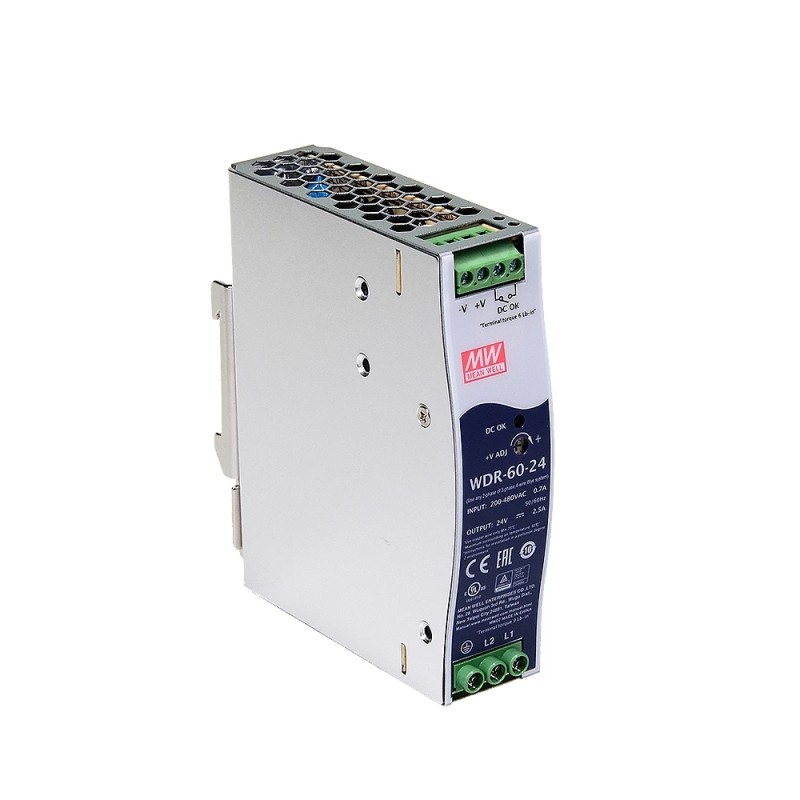

WDR-60-24 MEANWELL 60W 24VDC 2,5A 230/400VAC UltraWide Input Industriële DIN Rail voeding

WDR-60-24 MEANWELL 60W 24VDC 2,5A 230/400VAC UltraWide Input Industriële DIN Rail voeding
WDR-60-24 MEANWELL 60W 24VDC 2,5A 230/400VAC UltraWide Input Industriële DIN Rail voeding
Voorbestellen
WDR-60-24 MEANWELL 60W 24VDC 2,5A 230/400VAC UltraWide Input Industriële DIN Rail voeding
WDR-60-24 MEANWELL 60W 24VDC 2,5A 230/400VAC UltraWide Input Industriële DIN Rail voeding
WDR-60-24
Max. Uitgangsstroom(A)2.5
Uitgangsspanning(VDC)24
Efficiëntie(%)89%
Vraag
Bestellen & nalevingVoor inkoop
Min. bestelling
5

Downloads

Dezelfde serie
ModelMax. Uitgangsstroom(A)Uitgangsspanning(VDC)Efficiëntie(%)PrijsVoorraad
DR-RDN2020———€23,44Op voorraad
DRA-40-123.34—1285%€19,34Op bestelling
DRA-40-241.7—2487%€19,34Op bestelling
DRA-60-125—1285%€21,51Op bestelling
DRA-60-242.5—2487%€21,51Op bestelling
DRDN40-1240—1298%€31,09Op bestelling
DRDN40-2440—2498%€31,09Op bestelling
DRDN40-4840—4898%€31,09Op bestelling
EDR-120-1210—1285%€17,35Op voorraad
EDR-120-245—2487.5%€17,35Op bestelling
EDR-120-48-SALE2.5—4888.5%€18,46Op voorraad
EDR-150-246.5—2487%€24,40Op bestelling
EDR-75-126.3—1285.5%€20,42Op bestelling
EDR-75-243.2—2487.5%€14,64Op voorraad
EDR-75-481.6—4888.5%€20,42Op bestelling
ELG-150-24A-3Y5.6—2489€24,76Op bestelling
ERP-200-1216.8—1287%€26,39Op bestelling
ERP-200-248.33—2489%€26,39Op bestelling
ERP-350-1226.7—1287%€33,26Op bestelling
ERP-350-2414.6—2489%€33,26Op bestelling
ERPF-400-1230—1289%€38,32Op bestelling
ERPF-400-2416.7—2490%€38,32Op bestelling
GSM120B24-R7B5—240.9€43,56Op bestelling
GSM40A07-P1J5.34—7.50.855€18,62Op bestelling
GSM40A15-P1J2.67—150.885€18,62Op bestelling
GSM60A05-P1J6—50.815€20,78Op bestelling
GSM60A07-P1J6—7.50.86€20,78Op bestelling
GSM60A09-P1J6—90.875€20,78Op bestelling
GSM60A24-P1J2.5—240.905€20,78Op bestelling
GSM60A48-P1J1.25—480.915€20,78Op bestelling
Alles in de categorie bekijken
WDR-60-24 MEANWELL 60W 24VDC 2,5A 230/400VAC UltraWide Input Industriële DIN Rail voeding
Kenmerken Merk MEANWELL 24V DC 2,5A uitgang AC-ingangsspanningsbereik: 180 ~ 550VAC Nominaal v... Lees meer
vanaf
€39,59
5 + €38,43
10 + €37,34
50 + €36,31
100 + €35,34

Klik op het land om de actuele voorraad te bekijken.

Het minimum te bestellen aantal is 5
Eenvoudig retourneren

Retourneren binnen 30 dagen na levering. Neem eerst contact met ons op, dan regelen wij de rest.

Lees meer

Kenmerken

  • Merk MEANWELL
  • 24V DC 2,5A uitgang
  • AC-ingangsspanningsbereik: 180 ~ 550VAC
  • Nominaal vermogen: 60W
  • Enkelfasig en tweefasig breed ingangsbereik 180 ~ 550VAC
  • Beveiligingen: Kortsluiting/overbelasting/overspanning/overtemperatuur
  • Koeling door vrije luchtconvectie
  • Ingebouwd constant stroombegrenzend circuit
  • Kan worden geïnstalleerd op DIN-rail TS-35/7,5 of 15
  • UL 508 (industriële regelapparatuur) goedgekeurd
  • BS EN/EN61000-6-2(BS EN/EN50082-2) industrieel immuniteitsniveau
  • 100% volledige belasting burn-in test
  • Ingebouwd DC OK relaiscontact
  • 3 jaar garantie

Toepassingen

  • Industriële automatiseringsmachines
  • Industrieel besturingssysteem
  • Mechanische en elektrische apparatuur
  • Elektronische instrumenten, uitrusting of apparatuur
  • Huishoudelijke apparaten
Elektrische specificatie
Efficiëntie(%) 89%
Max. Uitgangsstroom(A) 2.5
Specificatie voeding
Dimensie(LxWxH)(mm) 32 x 125.2 x 102
Ingangsfrequentie(Hz) 47 - 63
Ingangsspanning(VAC/VDC) 180 - 550 / 254 - 780
Merk MEANWELL
PFC-functie Nee
Type vermogen DIN Rail Voedingen
Uitgangsspanning(VDC) 24
Vermogen(W) 60
